UEC50LSE-Eco-A2

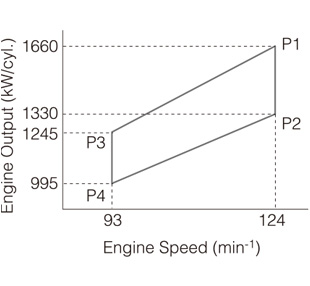

Rated power [kW]
| Speed | 124 min-1 | 93 min-1 | ||
|---|---|---|---|---|
| Cyl. | P1 | P2 | P3 | P4 |
| 5 | 8 300 | 6 650 | 6 225 | 4 975 |
| 6 | 9 960 | 7 980 | 7 470 | 5 970 |
| 7 | 11 620 | 9 310 | 8 715 | 6 965 |
| 8 | 13 280 | 10 640 | 9 960 | 7 960 |
| 9 | 14 940 | 11 970 | 11 205 | 8 955 |
| 10 | 16 600 | 13 300 | 12 450 | 9 950 |
Principle dimension [mm]
| Cyl. | L | LCC | B | C | D | F1 | F2 | G |
|---|---|---|---|---|---|---|---|---|
| 5 | 5 550 (5 575) |
880 | 3 150 | 1 088 | 7 688 | 9 250 | 8 409 | 1 636 (1 704) |
| 6 | 6 430 (6 455) |
880 | 3 150 | 1 088 | 7 688 | 9 250 | 8 409 | 1 636 (1 704) |
| 7 | 7 310 (7 335) |
880 | 3 150 | 1 088 | 7 688 | 9 250 | 8 409 | 1 636 (1 704) |
| 8 | 8 190 (8 215) |
880 | 3 150 | 1 088 | 7 688 | 9 250 | 8 409 | 1 636 (1 704) |
| 9 | 9 070 (9 095) |
880 | 3 150 | 1 088 | 7 688 | 9 250 | 8 409 | 1 636 (1 704) |
| 10 | 9 950 (9 975) |
880 | 3 150 | 1 088 | 7 688 | 9 250 | 8 409 | 1 636 (1 704) |
L: Minimum length of engine LCC: Distance between cylinder centers B: Bedplate width at foot flange C: Crankshaft to underside of foot flange D: Engine height from crankshaft center G: Distance from bedplate bottom to crankshaft center F1: Piston overhaul height with standard tool F2: Piston overhaul height with special tool
Weight [ton]
| Cyl. | HPSCR | |
|---|---|---|
| 5 | 188(215) | * |
| 6 | 219(250) | * |
| 7 | 251(287) | * |
| 8 | 281(321) | * |
| 9 | 312(356) | * |
| 10 | 356(405) | * |
weight in ( ) are for engine of bedplate and column, made by cast iron.
SFOC variation
UEC50LSE-Eco-A2, complied with IMO Tier Ⅱ SFOC [g/kWh] with standard
| Load | P1 | P2 | P3 | P4 |
|---|---|---|---|---|
| 100% | 167.0 | 161.0 | 167.0 | 161.0 |
| 75% | 161.5 | 155.5 | 161.5 | 155.5 |
| 50% | 163.1 | 157.1 | 163.1 | 157.1 |
UEC50LSE-Eco-A2, complied with IMO Tier Ⅱ SFOC [g/kWh] with LLO
| Load | P1 | P2 | P3 | P4 |
|---|---|---|---|---|
| 100% | 168.6 | 162.6 | 168.6 | 162.6 |
| 75% | 160.8 | 154.8 | 160.8 | 154.8 |
| 50% | 161.6 | 155.6 | 161.6 | 155.6 |
UEC50LSE-Eco-A2, complied with IMO Tier Ⅱ SFOC [g/kWh] with LLO+EGB
| Load | P1 | P2 | P3 | P4 |
|---|---|---|---|---|
| 100% | 168.6 | 162.6 | 168.6 | 162.6 |
| 75% | 160.8 | 154.8 | 160.8 | 154.8 |
| 50% | 159.4 | 153.4 | 159.4 | 153.4 |
UEC50LSE-Eco-A2-HPSCR, complied with IMO Tier Ⅲ SFOC [g/kWh] with LLO+EGB
| Mode | Load | P1 | P2 | P3 | P4 |
|---|---|---|---|---|---|
| Tier Ⅱ Mode |
100% | 168.6 | 162.6 | 168.6 | 162.6 |
| 75% | 160.8 | 154.8 | 160.8 | 154.8 | |
| 50% | 159.4 | 153.4 | 159.4 | 153.4 | |
Tier Ⅲ Mode |
100% | 168.9 | 162.9 | 168.9 | 162.9 |
| 75% | 161.0 | 155.0 | 161.0 | 155.0 | |
| 50% | 159.8 | 153.8 | 159.8 | 153.8 |
